Security filter housing, precise filter housing or cartridge filter housings for water treatment

Security filters are mainly used for production water filtration, alcohol filtration, pharmaceutical filtration, acid-base filtration, and reverse osmosis RO membrane front security filtration in industries such as drinking water, domestic water, electronics, printing and dyeing, textile, and environmental protection. They have high flux, low material cost, polished or matte appearance, and acid pickling and passivation treatment on the inner surface. The main function is to protect the water treatment system and ensure the effluent quality standards. This article mainly introduces the principle and characteristics of security filters.
send email to us

Products Details

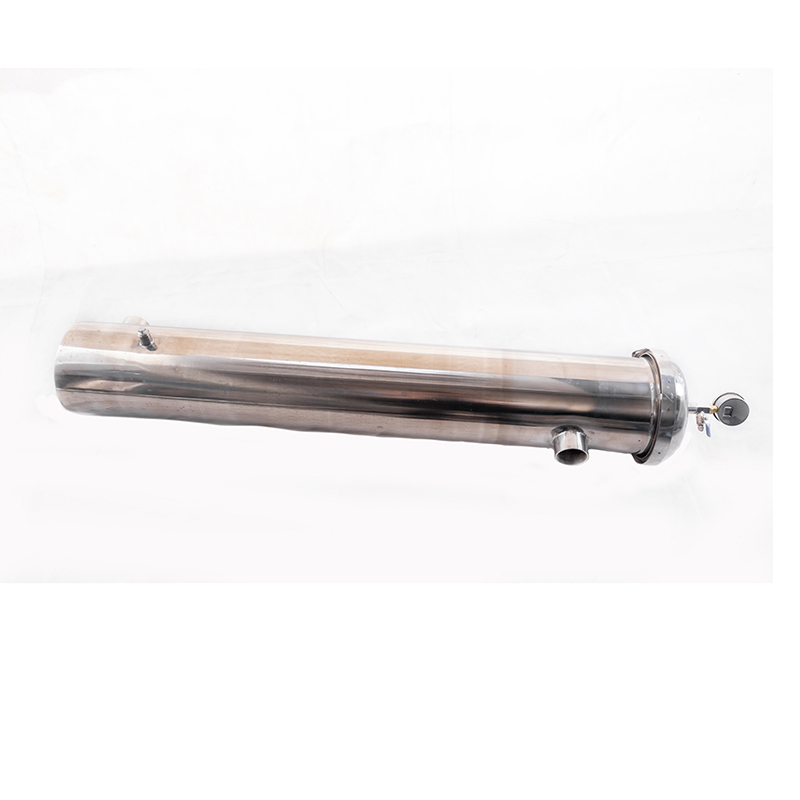

item SS304 SS316 Stainless Steel multi Cartridage Filter Housing
Designed Flows 1-160 M3/H
Material Stainless steel 304 /316
Size(mm) customized
Application Food, Paint, Medical, Cosmetics, Chemicals, Beverage
Useage Water treatment plant
Certificate iso
OEM and ODM Welcome
Models Specifications
Model NO. Diameter A(mm) Height B (mm) Inlet/ Outlet Flows (T/H) Cartridge NO. Cartridge Lenght
JM3-10-K 167 490 DN25 1 3 10"
JM3-20-K 167 740 DN25 1.5 3 20"
JM3-30-K 167 990 DN32 3 3 30"
JM3-40-K 167 1245 DN40 4 3 40"
JM7-10-K 219 490 DN25 2.5 7 10"
JM7-20-K 219 740 DN32 5 7 20"
JM7-30-K 219 990 DN40 7 7 30"
JM7-40-K 219 1245 DN50 10 7 40"
JM10-40-Y 300 1630 DN65 15 10 40"
JM15-40-Y 350 1660 DN80 22 15 40"
JM20-40-Y 400 1680 DN80 35 20 40"
JM25-40-Y 450 1710 DN100 45 25 40"
JM30-40-Y 500 1900 DN100 55 30 40"
JM35-40-Y 550 1960 DN125 65 35 40"
JM45-40-Y 600 2000 DN125 75 45 40"
JM50-40-Y 650 2030 DN125 80 50 40"
JM60-40-Y 700 2050 DN150 100 60 40"
JM65-40-Y 750 2080 DN150 105 65 40"
JM70-40-Y 800 2100 DN150 110 70 40"
JM80-40-Y 900 2150 DN150 130 80 40"
JM100-40-Y 1000 2200 DN200 160 100 40"
Security filter is a precision filter that works by using the 5um hole on the PP filter element for mechanical filtration. Trace suspended particles, colloids, microorganisms, etc. remaining in water are captured or adsorbed on the surface or pores of the PP filter element. As the water production time increases, the working resistance of the PP filter element gradually increases due to the pollution of the intercepted materials. When the water pressure difference between the inlet and outlet reaches 0.1 MPa, the filter element needs to be replaced. The main advantages of security filters are high efficiency, low resistance, and easy replacement.1. It can effectively remove suspended solids, impurities, rust and other substances in the liquid. 2. Can withstand high filtration pressure. 3. The unique deep mesh structure inside the security filter ensures that the filter element has a high slag carrying capacity. 4. The filter element can be made of various materials to meet the needs of various fluid filtration. 5. The appearance of the security filter is small, with a large filtering area, low resistance, and long service life. 6. Acid and alkali resistant chemical solvents, suitable for filtration equipment in the chemical industry. 7. It has high strength, high temperature resistance, and the filter element is not easily deformed. 8. Low price, low operating cost, easy to clean filter, replaceable filter element, and long service life of filter. 9. Low filtration resistance, high liquid flux, and strong pollutant interception ability
